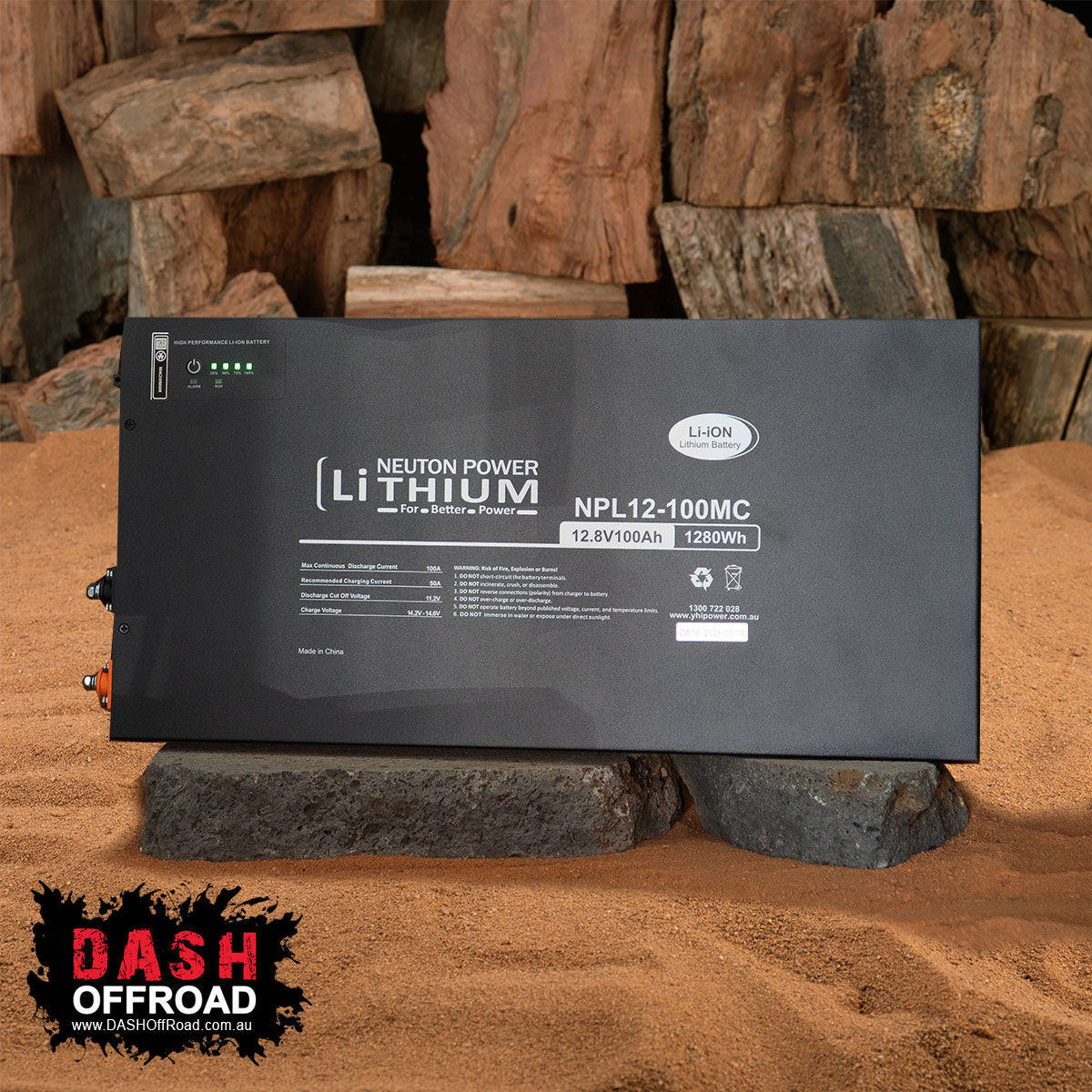

100AH Lithium Battery with Circuit Breaker

A high-performance 100Ah LiFePO4 lithium battery with Bluetooth monitoring, built-in BMS protection and a circuit breaker for reliable, efficient power.

Features:

  • High-quality prismatic LiFePO4 cells for excellent consistency, safety and long cycle life
  • UN38.3 certified
  • Over 3,500 charge cycles at 80% depth of discharge (DOD)
  • Durable SPCC steel casing with black powder-coated finish
  • Fast charging capability
  • Wide operating temperature range from -20°C to +55°C
  • Built-in Battery Management System (BMS) for comprehensive battery protection

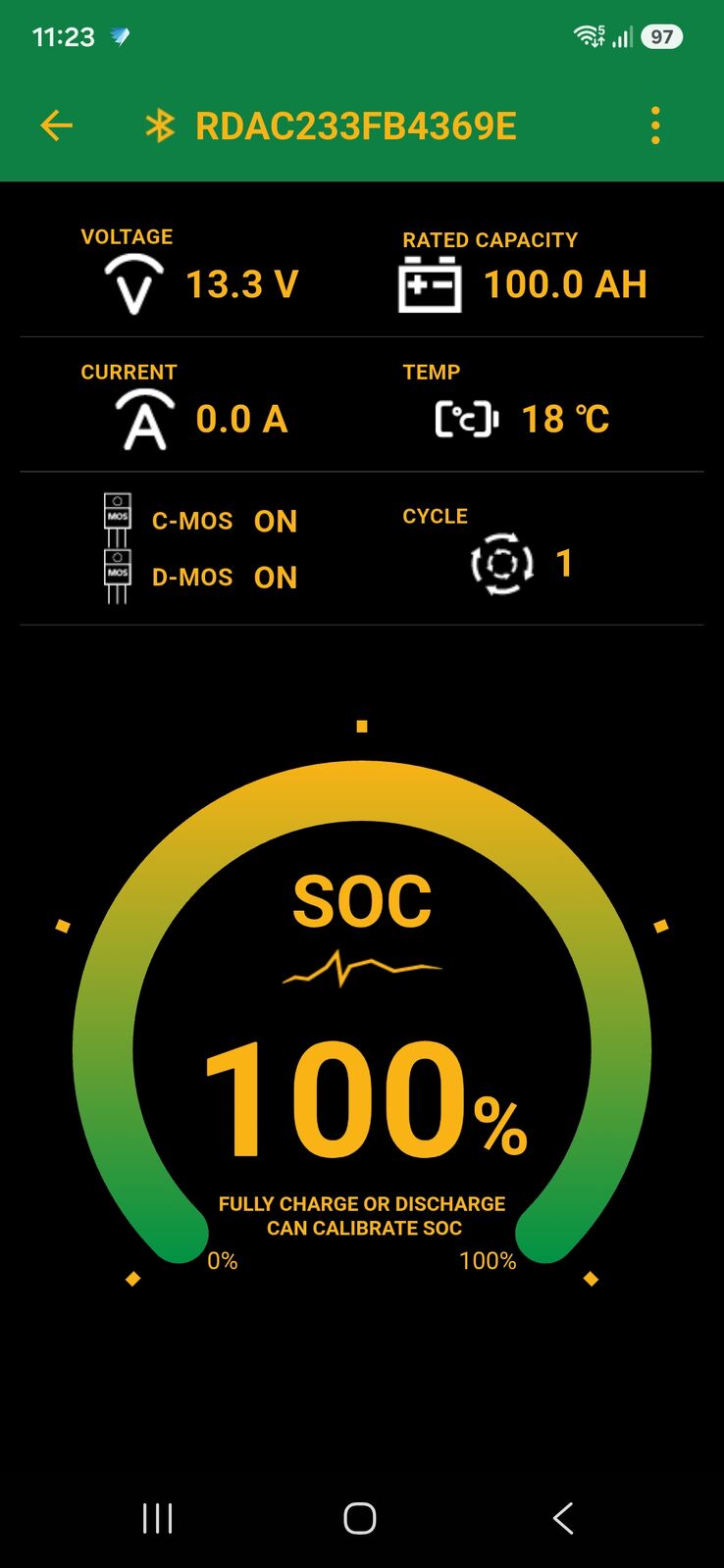

  • Bluetooth connectivity for convenient battery monitoring
  • Supports up to 4 batteries connected in parallel
  • Supports up to 4 batteries connected in series

Specifications

  • Nominal Voltage: 12.8V
  • Nominal Capacity: 100Ah
  • Total Energy: 1,280Wh
  • Maximum Charging Current: 100A
  • Recommended Charging Current: 50A
  • Charging Voltage: 14.0–14.6V
  • Maximum Discharge Current: 300A @ 1 second
  • Dimensions: 560 × 250 × 70mm
  • Weight: 14kg
  • Operating Humidity: 0–95% RH (non-condensing)
  • Operating Temperature Range: Charge 0°C to +50°C | Discharge -20°C to +55°C
  • BMS Protection: Overcharge, over-discharge, over-current, over-temperature, low-temperature and short-circuit protection
  • Parallel Support: Yes, up to 4 batteries
  • Series Support: Yes, up to 4 batteries
  • Cycle Life: >3,500 cycles
  • Designed Calendar Life: 10 years
  • Communication: Bluetooth connectivity

(NPL12-100MC)

SKU NPL12-100MC
Brand DASHOffroad
Shipping Weight 10.0000kg
Shipping Width 0.310m
Shipping Height 0.160m
Shipping Length 0.630m
Shipping Cubic 0.031248000m3
