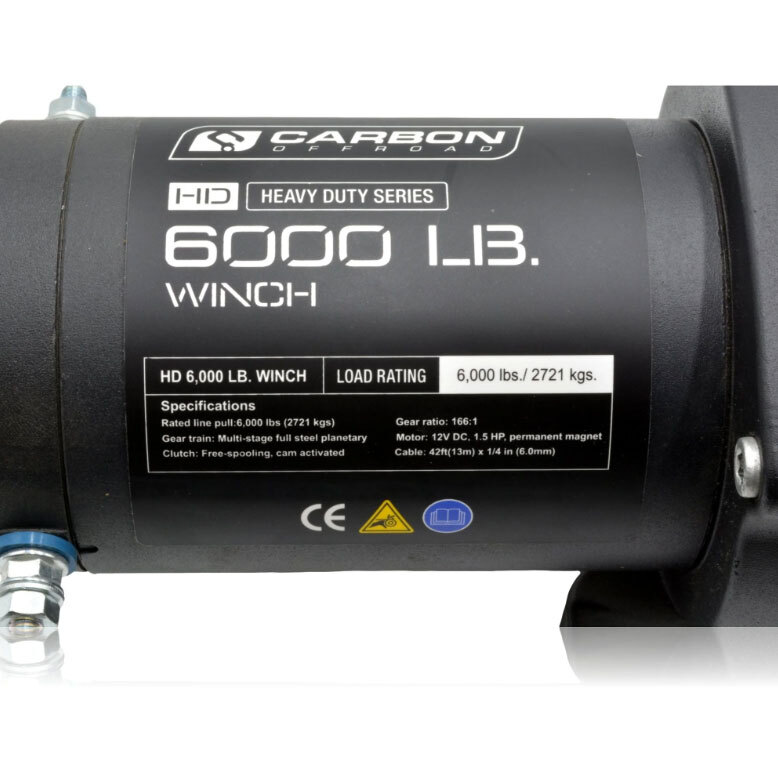

Carbon Offroad Tank 6000lb ATV UTV Small 4x4 Winch Kit

Introducing the Tank 6000lb Small 4x4 Winch – a compact winch designed for ultimate convenience. Its integrated mounting plate ensures a hassle-free installation. Includes both wireless and wired remote controls, this winch setup offers unparalleled versatility.

Tailored for small car and equipment trailers, the Tank 6000lb Winch shines as the perfect solution. Effortlessly load heavy equipment onto your van when it's strategically mounted at the rear. It's not limited to just that – this winch has demonstrated its power in loading small boats and even opening cattle gates on Livestock Truck Trailers.

An exceptional all-rounder, the Tank 6000lb Winch is dedicated to making your tasks easier. Whether you're looking to streamline work processes or rescue your Jimny or trailer from muddy terrain, this winch stands ready to prove itself. Experience the convenience, power, and reliability that the Tank 6000lb Small 4x4 Winch can deliver.


  • Sealed motor and gear train for perfect operations in extreme conditions.
  • A permanent magnet motor provides heavy-duty torque for increased pulling power.
  • Cam action disengages gears for near-silent free-spooling.
  • Mechanical and dynamic brake offers increased control and prevents rollback.


  • Rated line pull: 6,000 lbs, (2721kg) single-line
  • Motor: 12V DC 1.5HP motor
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 166:1
  • Clutch: Free spooling, Cam activated
  • Synthetic Rope: 13m x 6.0mm
  • Fairlead: Aluminium Hawse
  • IP Rating: IP66 - Winch and Controls (Except remote switch)
  • Winch Dimensions ( L x W x H ): 350.5 x 115 x 120mm
  • Mounting Bolt Pattern: 76mm x 167mm
  • Shipping Weight: 12.2kg

12V DC PERFORMANCE SPECS (first layer of drum):

Line Pull


Line Speed


Current @12V
0 (0)  20.5 (6.2) 30 Amps
1000 (454) 16.1 (4.9) 83 Amps
2000 (907) 12.8 (3.9) 136 Amps
3000 (1361) 10.7 (3.3) 168 Amps
4000 (1814) 8.6 (2.6) 232 Amps
6000 (2721) 4.9 (1.5) 320 Amps


** Please note the manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.**


Brand Carbon Winch
Shipping Weight 20.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.500m
Shipping Cubic 0.030000000m3
