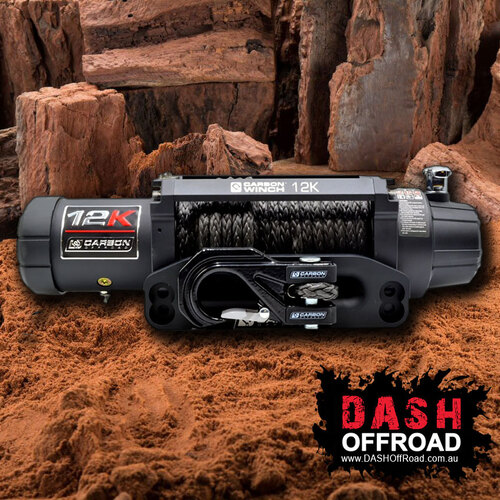

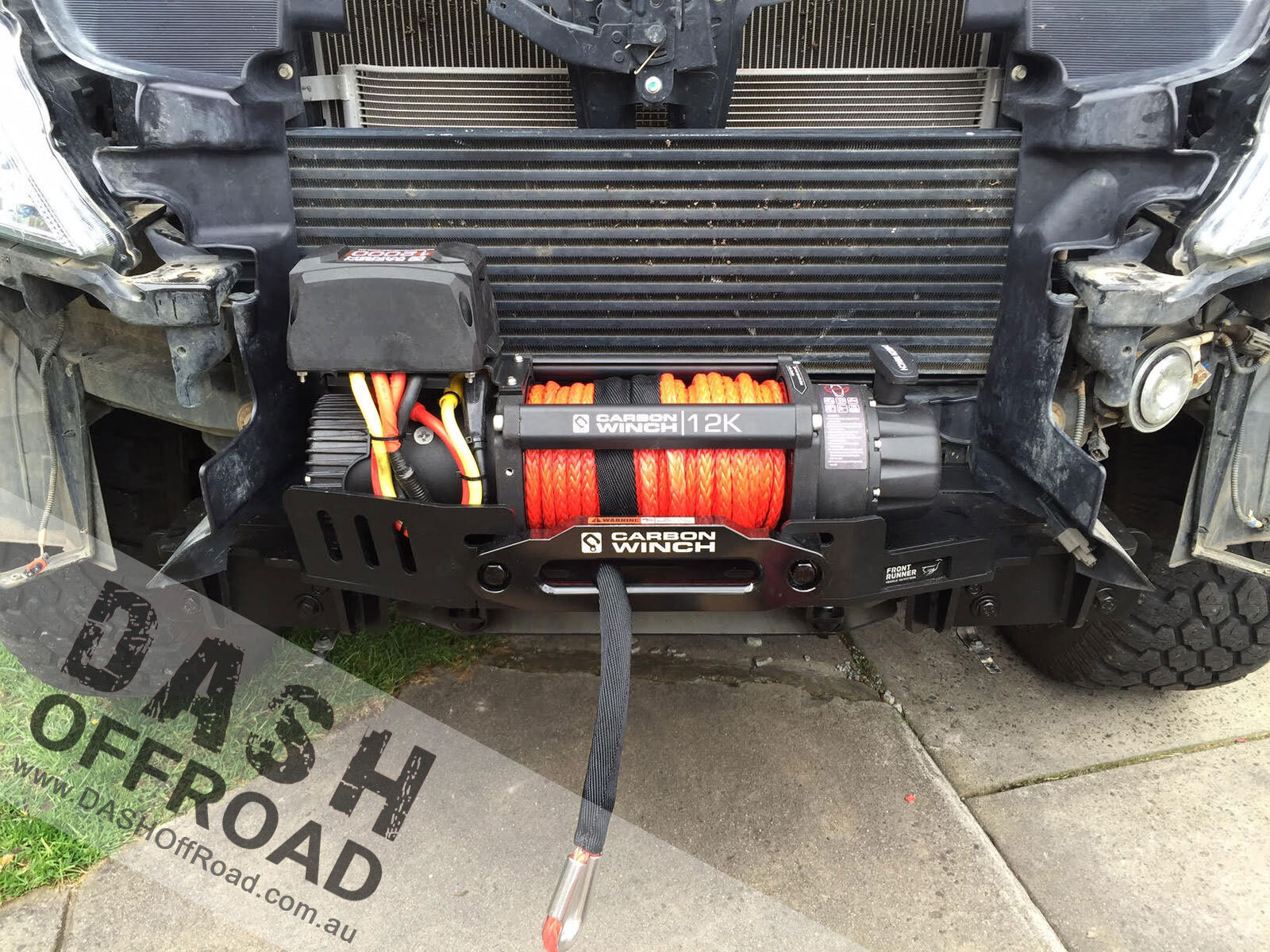

Carbon 12K 12000lb Winch with synthetic rope

Carbon Winches are designed and engineered by the Australian Offroad Business KPD Industries. A 4-year project began in 2012 to build a winch that would surpass all options available. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability and toughness being tested in some of the harshest environments in Australia and overseas including Iceland and the Middle East.

Features

  • Designed for the harshest Australian conditions.
  • Fully sealed to resist water, dirt, and dust ingress into motor, drum, and gearbox mechanisms.
  • 12000lb fast line pull with a 216:1 planetary gearset ratio.
  • 6.2HP series-wound electric motor.
  • 5-position solenoid box mounting bracket.Battery Isolator Switch.
  • Wireless remote control unit with a lanyard - FULLY SEALED RECEIVER UNIT built into the control box.
  • Rotating ring gear clutch for easy low drag freespool.
  • Electroplated planetary gearsets for long life.
  • Breather kit pre-fitted to the electric motor.
  • Multi Fit Fairlead - no need to worry about which winch suits your bullbar! Simply install as standard fitment or flip over to offset the rope outlet by 20mm.
  • All internals fully zinc electroplated for corrosion protection.
  • High-performance motor brushes with copper-impregnated contacts and corrosion-plated brush mount.
  • Bearing-supported fully balanced armature for superior performance.
  • Hoist-style brake unit mounted to the drum endplate provides superior holding power by braking through the gear train with no heat generated on the drum. No contact to the drum, no damage to synthetic rope.
  • 4-position mounting for the control box bracket over the motor or over the drum on top for flat mounting plates or on the front of the winch for top-mounting the control box when the winch is mounted vertically. Alternatively, 700mm cables allow remote mounting of the control box separately from the winch.

NO FUSS WARRANTY

  • 5 year Water Ingress Warranty.
  • 5 year electrical warranty on motor / solenoid unit.
  • Limited lifetime gear train warranty.
  • Supported worldwide from Australia.
  • All winches are tested for full function and load prior to packing. We guarantee your winch will be 100% fully operational upon arrival.

What's included

  • 12K Winch
  • 24x10mm Black Synthetic Dyneema Rope
  • Control box 500amp:
    • 1pc 500A solenoid and battery cables + wireless remote
    • 1 x long black battery cable
  • Hand remote control & Wireless remote control
  • CNC Billet Black Plate Hawse Fairlead
  • Hardware:
    • 4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount.
    • 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts.
  • Carbon Winch Hook Kit
  • Black Hook strap
  • Owners Manual



Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. The main features include:

  • 6.2 HP Series Wound motor.
  • 216:1 ratio 3-stage planetary gearbox.
  • Automatic brake in the motor housing drum plate provides load holding through the geartrain, not directly on the drum – (No heat build-up on drum).
  • Rotating ring gear freespool clutch assembly minimizes freespool drag and completely eliminates clutch engagement issues.
  • Power in and power out via a plug-in hand remote or a wireless remote controller. The remote controller has auto-off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
  • 500amp sealed solenoid unit and wired handle remote control and wireless remote control unit.


SPECIFICATIONS

  • Part number: CW-12K
  • Rated line pull: 12000 lbs, (5450 kg) single-line
  • Motor: 12V DC 6.2HP series wound motor
  • Remote Control: Remote Switch, 12’ (3.7m) lead.
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 216:1
  • Clutch (freespooling): Rotating Ring Gear
  • Brake: Full load automatic brake installed in the motor housing end plate. No heat on drum.
  • Drum Diameter/Length: 2.5’’/8.8’’ (64mm/224mm)
  • Synthetic Rope: 24m x 10mm diameter
  • Fairlead: CNC billet alloy black anodised with laser etched logo
  • Recommended Battery: 650 CCA minimum for winching
  • Mounting Bolt Pattern: 10’’ x 4.5’’ ( 254mm x 114.3 )
  • Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
  • Packing Dimensions ( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
  • Winch weight with synthetic rope attached: 19.5kg


Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg

12V DC performance specs (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 43.3(13.2) 70 amps 1/12,000 (5450)
2000 (910) 11.5 (3.5) 130 amps 2/9800 (4450)
4000 (1810) 9.2(2.8) 170amps 3/8300 (3770)
6000 (2720) 7.9 (2.4) 220amps 4/7200 (3270)
8000 (3630) 6.9 (2.1) 265 amps
10000 (4540) 5.6 (1.7) 320 amps
12000 (5450) 4.6 (1.4) 390 amps



(CW-12K)

SKU CW-12K
Brand Carbon Winch
Shipping Weight 29.0000kg
Shipping Width 0.370m
Shipping Height 0.250m
Shipping Length 0.615m
Shipping Cubic 0.056887500m3
