Carbon TANK 12000lb 4x4 Winch Kit

Unyielding, robust, and high-powered, the TANK winch embodies the essence of durability and strength. The TANK Winch defies expectations with remarkable strength without unnecessary weight.

Crafting the ultimate offroad vehicle often involves time, dedication, and extra components, leading to added weight. For 4x4 enthusiasts, the ability to self-recover becomes more important, especially during solo adventures. The days of heavy steel cable winches and bulky bullbars are fading. The TANK Winch represents a new era of lightweight options. Advancements in technology and materials have created the TANK – a winch made from precision-machined billet alloys and alloy castings. This design combines aesthetics and function, with sleek lines, a solid alloy control box, and a dependable alloy fairlead.

The TANK Winch boasts a revolutionary waterproofing system. The integration of the winch motor and drum frame occurs at the factory, followed by rigorous pressure leak testing at depths akin to 14 meters underwater – an unmatched feat in the industry. This stringent testing ensures the TANK Winch remains water-free out of the box. The gearbox housing, featuring a dual-stage mechanical and rubber o-ring seal, safeguards the winch's core against water infiltration at IP69K levels.

Elevate your offroad experience with the TANK Winch.

What's included

  • x1 Tank winch with synthetic rope
  • x1 control box kit complete with cables
  • x1 battery earth cable
  • x1 2 in 1 wireless remote control with plug in cable backup
  • x1 Alloy fairlead - standard offset
  • x1 Forged Alloy hook with mounting pin and split pin
  • x1 Mounting Bolt kit including separate fairlead mounting bolts
  • x1 control box "over motor" mounting bracket pair
  • x1 bolt kit for control box mounting
  • x1 rotary battery isolator switch
  • x1 battery isolator connecting cable 30cm
  • x1 battery isolator mounting bracket
  • x1 hook safety strap
  • x1 instruction manual

Specifications:

  • Rated Pulling Power: 12000lb (5454kg)
  • Power: 12V DC
  • Motor: 7.0HP Series Wound intermittent duty cycle
  • Cabling: 25mm2 conduited cable with terminated lugs
  • Hand Control: 2 in 1 rechargeable wireless or plug in wired loom -(spare battery included)
  • IP Rating: IP68 - Motor unit pressure tested to 20psi
  • Hook: High strength forged alloy wide gate hook
  • Control box: Premium Cast alloy compact design for over motor or over drum fitment with 600amp solenoid and inbuilt wireless receiver.
  • Isolator: Heavy duty marine rotary style isolator with mounting bracket
  • Winch Housing: Cast and precision machined alloy
  • Gear Train: 234:1 Ratio 3 stage planetary gearset

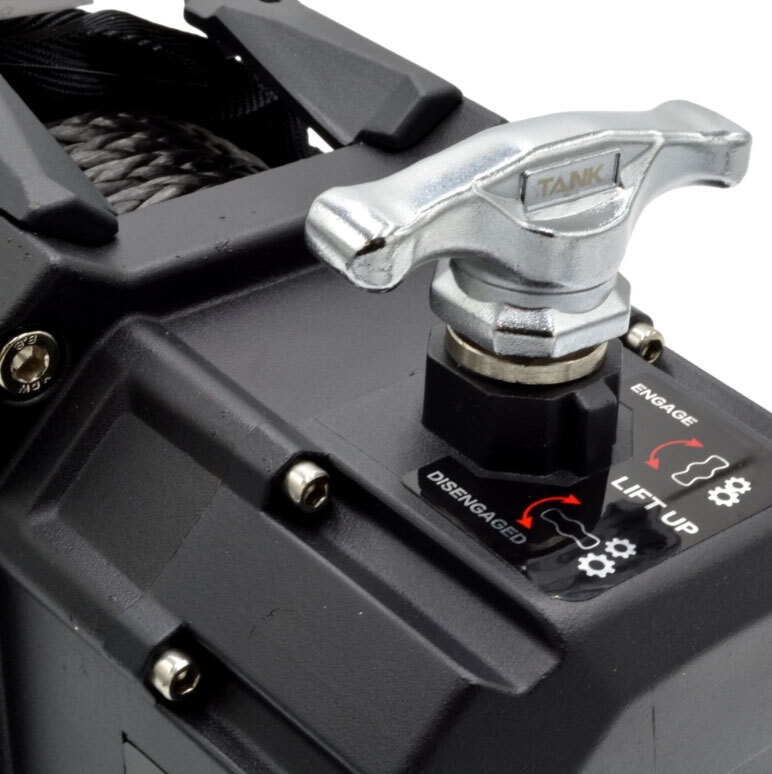

  • Clutch: Rotating ring gear clutch - easy engagement and disengagement
  • Synthetic rope: 26mm of 10mm diameter UHMWPE fibre
  • Mounting bolt pattern: industry standard 254mm x 114.3mm (10 x 4.5 inch)
  • Drum Diameter: 64mm
  • Battery: 650CCA minimum vehicle battery size for winching.
  • Weight:
    • Shipping Carton Weight: 29.5KG
    • As fitted to vehicle:  26.2kg
  • Warranty: Limited Lifetime Geartrain / 5 Year Electrical.



Rated Line Pull:

  • 1st layer of drum: 12000lb (5443kg) / Between 20-25m rope out
  • 2nd layer of drum: 9210lb (4186kg) / Between 9-20m rope out
  • 3rd layer of drum: 6894lb (3127kg) / Between 1-9m rope out



  • Line pull 0kg
    • Speed: 16.4ft/min - 5m/min
    • Amp Draw: 85 amp
  • Line pull 3000lb / 1361kg
    • Speed: 9.75ft/min - 3m/min
    • Amp Draw: 137 amp
  • Line pull 6000lb / 2722kg
    • Speed: 7.5ft/min - 2.28m/min
    • Amp Draw: 191 amp
  • Line pull 9000lb / 4082kg
    • Speed: 5.76ft/min - 1.76m/min
    • Amp Draw: 249 amp
  • Line pull 12000lb / 5443kg
    • Speed: 4.88ft/min - 1.49m/min
    • Amp Draw: 300 amp

(CW-TK12)

SKU CW-TK12
Brand Carbon Winch
Shipping Weight 30.0000kg
Shipping Width 0.400m
Shipping Height 0.280m
Shipping Length 0.620m
Shipping Cubic 0.069440000m3
